Melt Forging Rolling

Melt

With the continuous improvement of equipment capacity, our melting capacity has reached 13,000t. Now we have 10tEBCHM furnace, 17tVAR furnace, 10tVAR furnace, 6tVAR furnace, etc., which can be used for primary, secondary and tertiary melting.

Capability

Round ingot(EBCHM furnace) max size(mm):Φ910×7500, Φ735×7500
Slab(EBCHM furnace) size range:220×1280×7500
Round ingot(VAR furnace) max size range(mm):Φ960×7500
EBCHM: Improved initial melting, eliminating the high and low density inclusions, improve the uniformity, massively reduce the metal loss, improve the production efficiency.

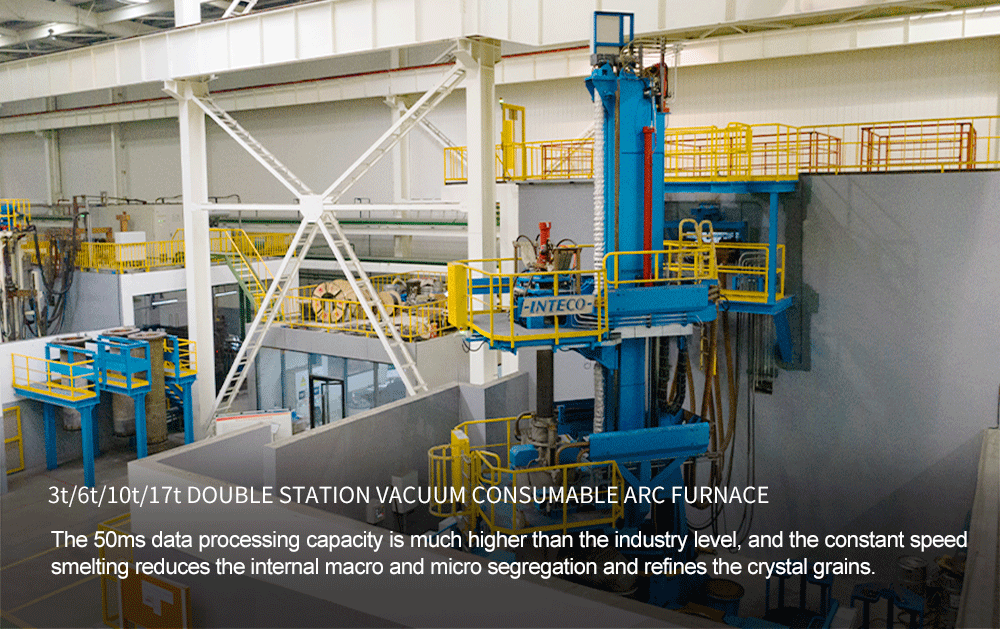

VAR furnace: Final Refining，reducing the macro-and micro- segregation, refining grain size to achieve the homogeneity and consistency of the chemical composition and grain size of the ingot.

Production Line Advantage

Leading Technology
EBCHM+VAR Melting Process

Leading Technology
With the world's leading "EBCHM+VAR" melting process route, the secondary melting makes the materials purer, more uniform and more consistent, providing high-quality products for the aerospace and medical fields.
Waste Recycling
Improve Material Utilization

Waste Recycling
Master the material recovery technology, use the EBCHM furnace to recover blocks, scraps, etc. generated during the production process, and the added ratio of the recovered materials can reach 30-90%.
Efficient and High Quality
Double-Station Operation

Efficient and High Quality

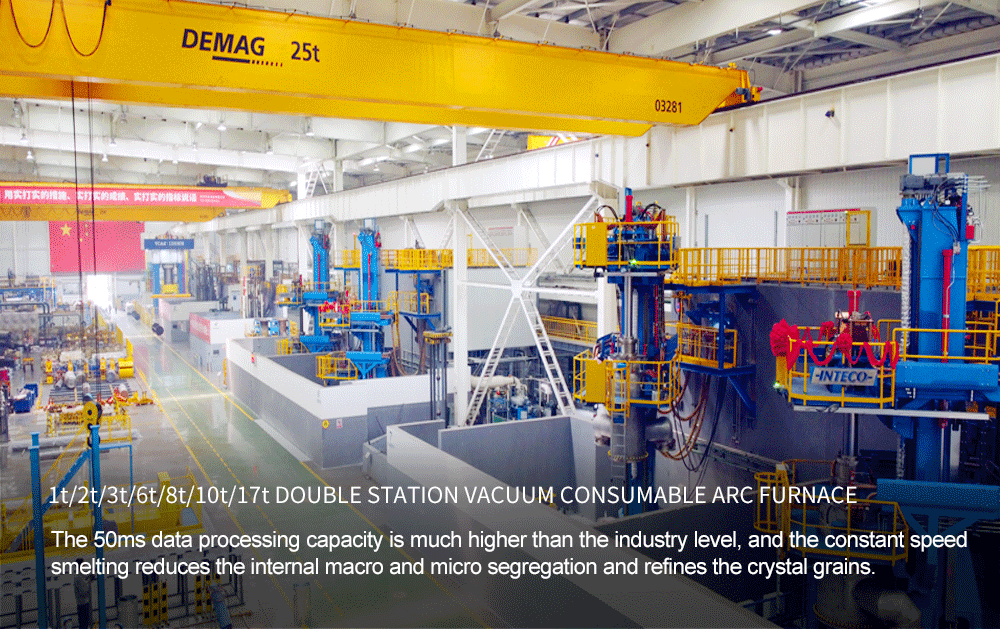

The high-power VAR furnace can undertake the task of producing up to 17t titanium ingots, while the dual-station furnace allows one ingot melting to be quickly started after the other melting, so as to achieve high efficiency and high output.
Intelligent Management
Highly Automated Production Line

Intelligent Management
The production line is highly automated with the main equipment can be intelligently controlled to facilitate process quality traceability.

Grades Offered

GR5/BT6/IMI318，BT20，Ti-6242S，BT9，Ti-6246，Ti-15333，GR19，Ti-8823，etc.

TCAE provides customized grades based on applications. Please contact us for more information.

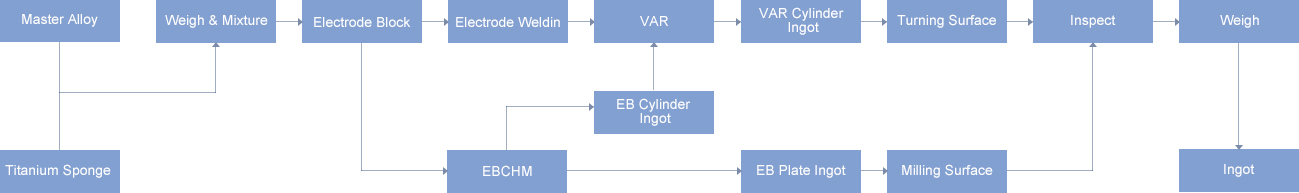

Process Flow

2020/10/05

Wu Guanghui, academician of the Chinese Academy of Engineering and chief designer of C919, visited Tiancheng Aviation Materials to guide the work

On October 5th, Wu Guanghui, academician of the Chinese Academy of Engineering and chief designer of C919, and his entourage visited Tiancheng Aviation Materials to guide the work, accompanied by the company's chairman Che Xiangan and general manager Che Wei.

discover more

2020/08/17

Leading the high-quality development of titanium alloy smelting, Tiancheng Aviation Materials and INTECO signed a strategic cooperation agreement

On August 15, 2020, Shaanxi Tiancheng Aviation Materials Co., Ltd. (hereinafter referred to as “Tiancheng Aviation Materials”) and Austrian Intec Special Smelting Technology Company (hereinafter referred to as “INTECO”) held a strategic cooperation agreement signing ceremony at Tiancheng Aviation Materials. Che Wei, general manager of Tiancheng Aviation, Nan Chunguo, deputy general manager, and Lan Haifeng, the commercial representative of INTECO, attended the signing ceremony.

discover more

2020/08/10

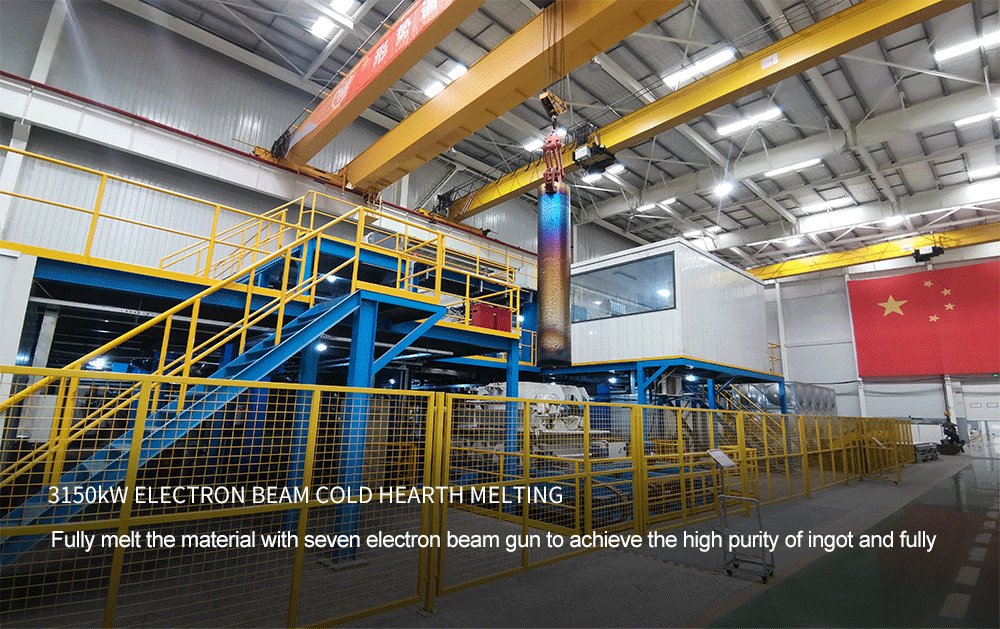

Tiancheng Aviation Materials 3150KW electron beam cooling bed furnace first furnace slab smelting

On August 8, 2020, Tiancheng Aviation Materials 3150KW vacuum cold gun electron beam cooling bed furnace (hereinafter referred to as "EB furnace") successfully produced the first piece with a height of 7250 × 1280 × 220 mm and a weight of 9215KG using TA2 residual material. Pure titanium slabs.

discover more
